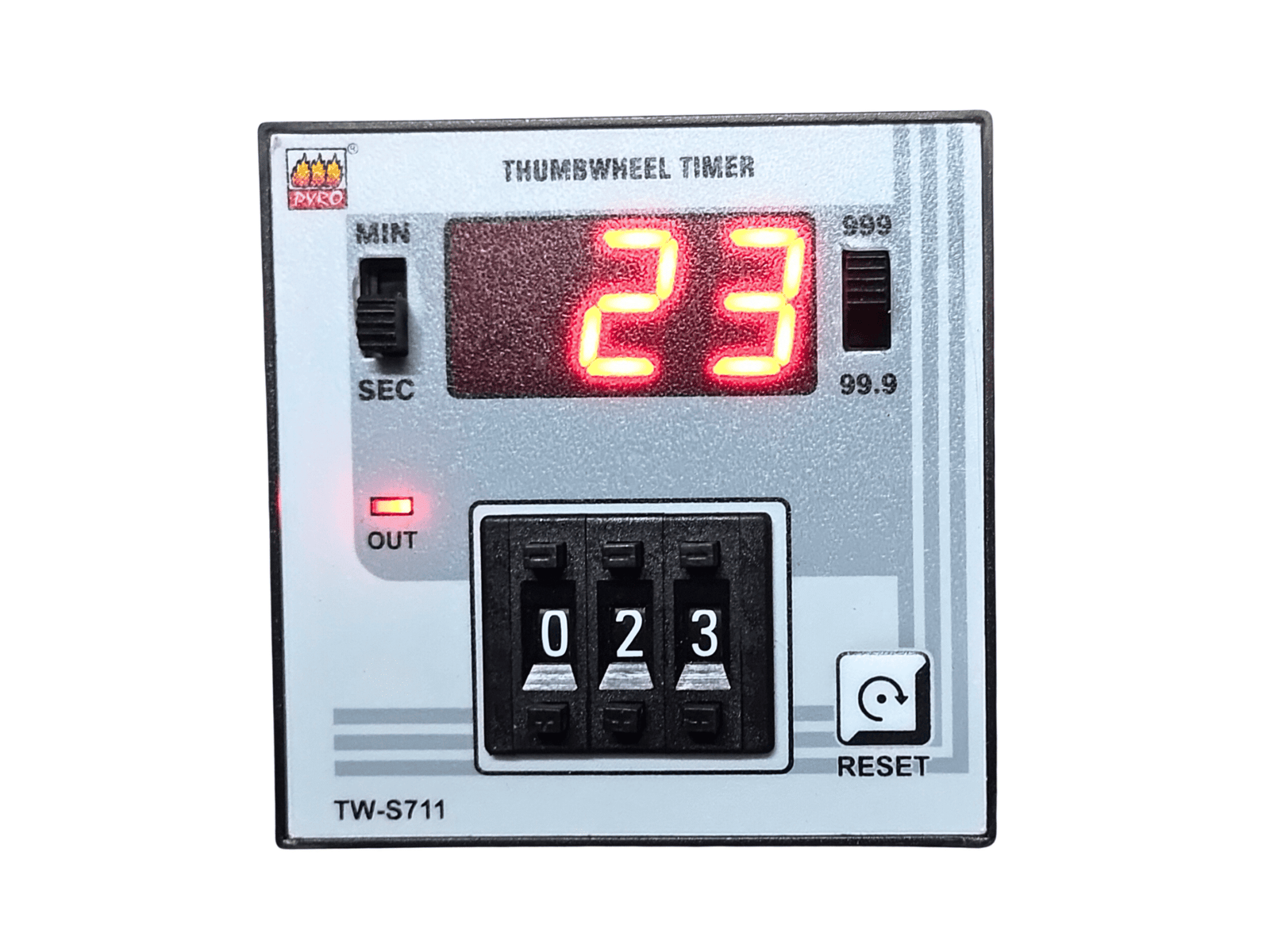

Pyro thumbwheel timer is a compact, industrial-grade digital timer that uses mechanical push-wheel switches to set time intervals. It typically features a 3-digit LED display, offering precise, reliable controlling for on-delay or interval operating modes, commonly used in machinery, conveyors, and HVAC systems. It offers high-precision timing, supporting multiple ranges from seconds to hours.

---

Detailed Features and Components:-

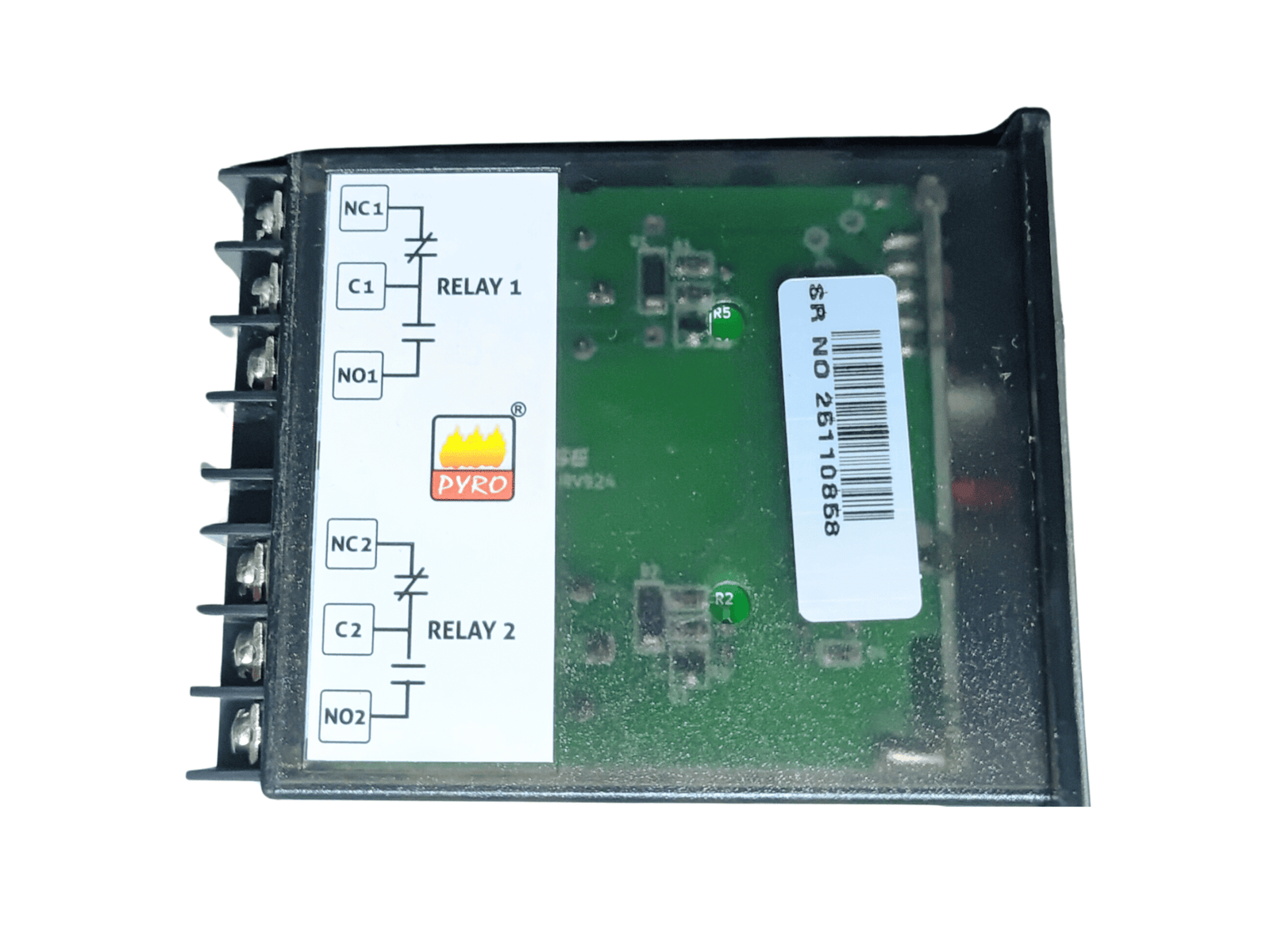

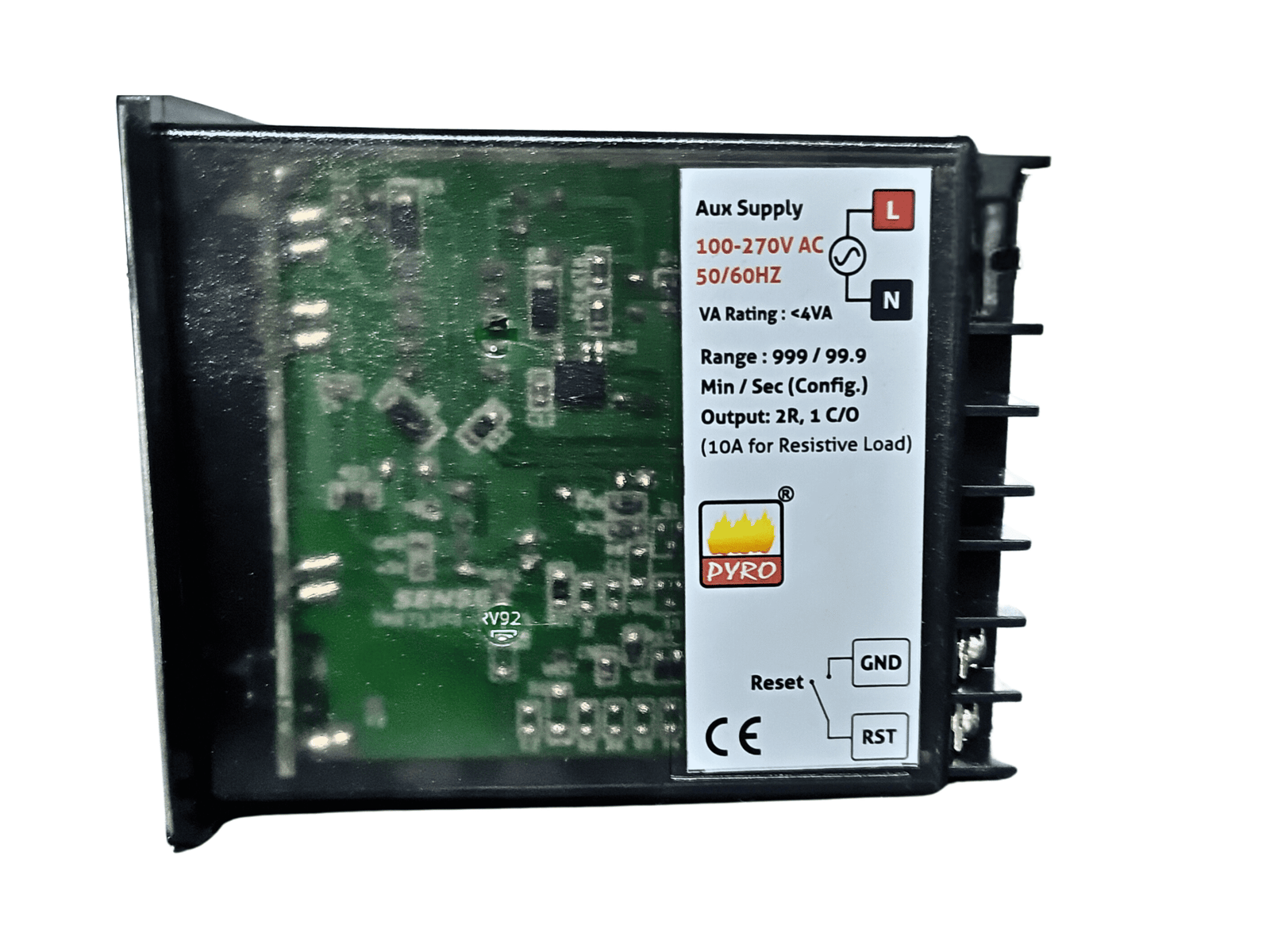

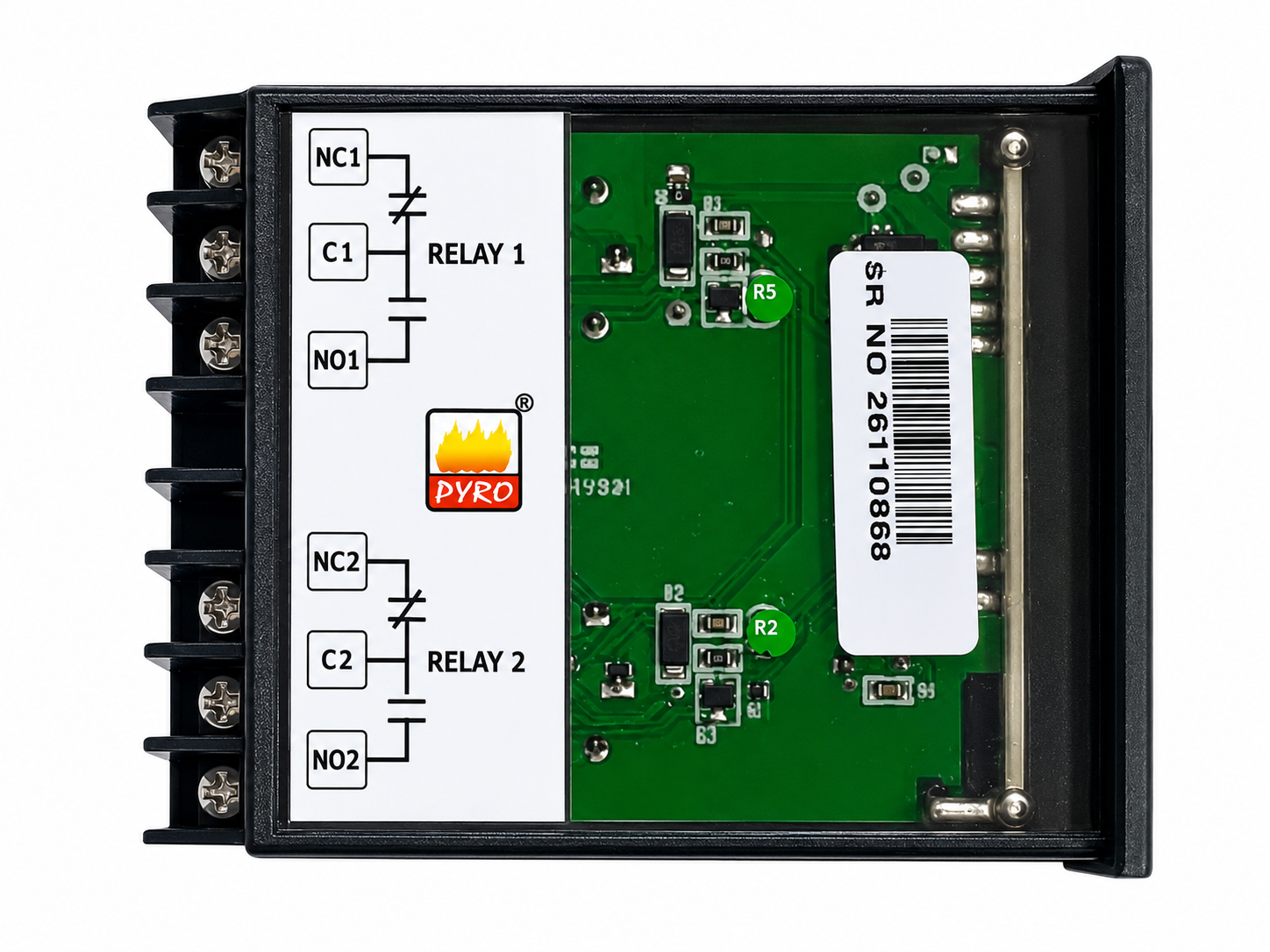

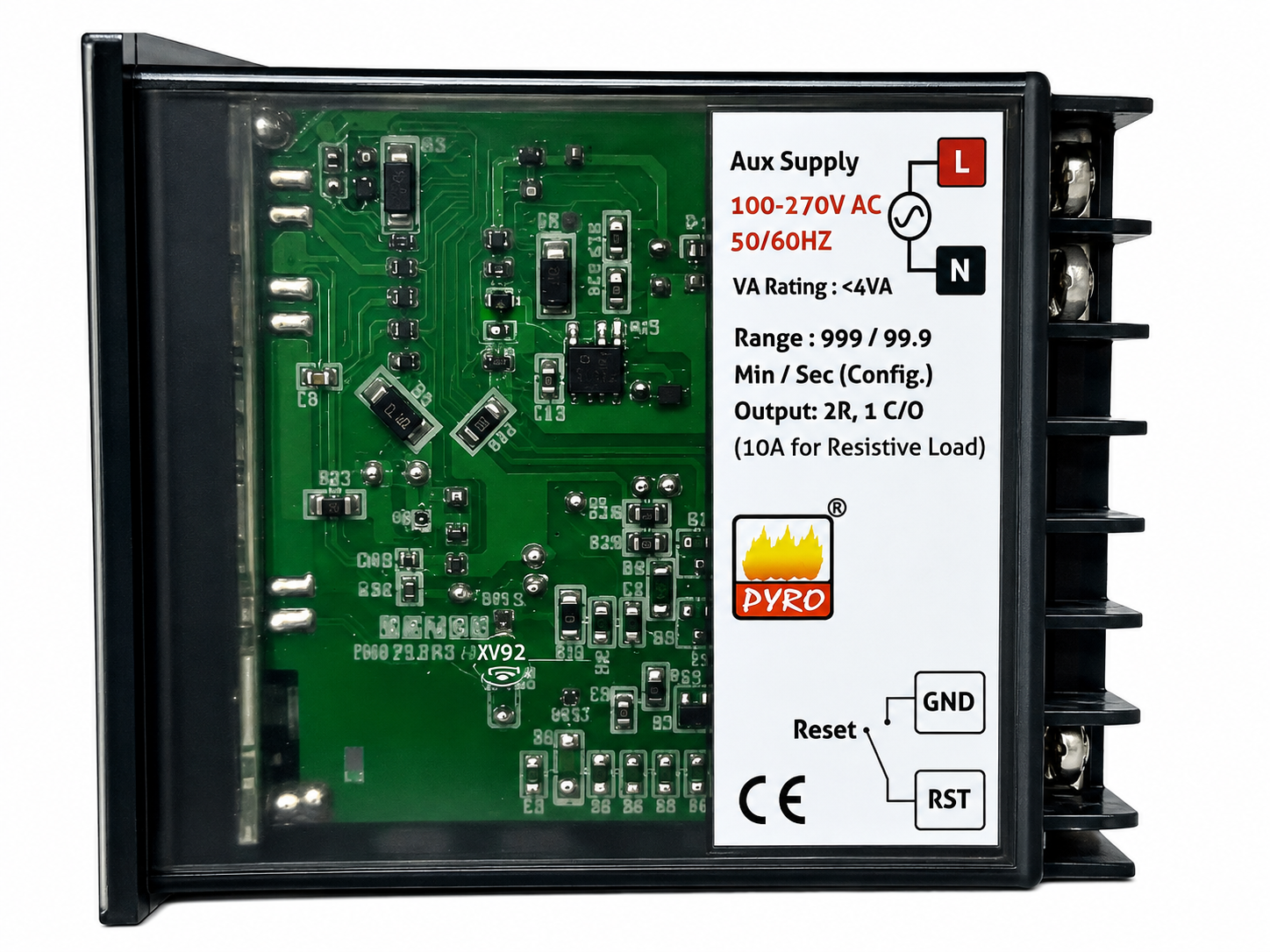

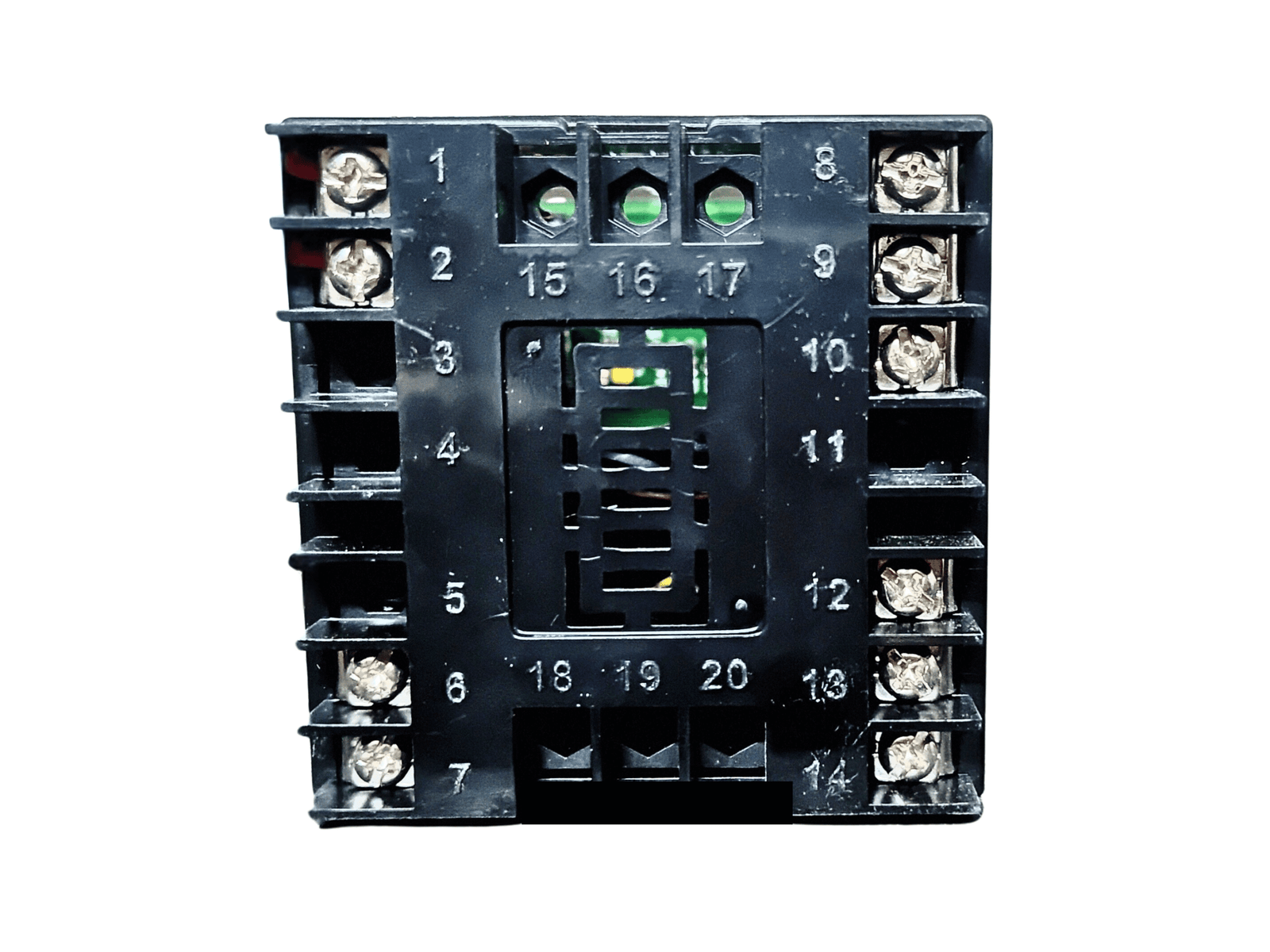

Time Setting:- Achieved via manual push-wheel switches, often allowing up to 3 digits (e.g., 0-999) to set time (9.99/99.9/999 sec/min/hr). Operating Modes:- Usually features ON Delay (starts timing when input is received) and Interval (output active for set time) modes. Display & Output:-  3-digit 7-segment LED display, typically with 1 or 2 Relay (SPDT) outputs  (e.g., 5A @ 250 VAC). Mounting & Size:- Panel-mounted with common sizes of 72mm. Reset Functions:– Provides options for front-panel, remote, or power-interruption reset. Counting:-Mostly down-counting from the set point, with some models allowing up-counting. Input Voltage:- Designed for high industrial adaptability, often 100 to 270 VAC/DC.

Working Principle:-

Setting Time:- The user sets the desired time interval on the front-panel thumbwheel switches. Activating:- Upon receiving a start pulse (input), the timer starts counting down (or up). Output Switching:- After the preset time is reached (in On-Delay mode) or while it is counting (in Interval mode), the relay contact changes state to control connected equipment. Reset:- Once the cycle completes, the timer is reset manually, via remote input, or automatically.

Key Benefits:-

Simple Operation: No complex software; simple physical wheel adjustment. High Reliability: Durable construction designed for harsh, dirty industrial environments. Easy Monitoring: 3-digit LED displays the current process time.
